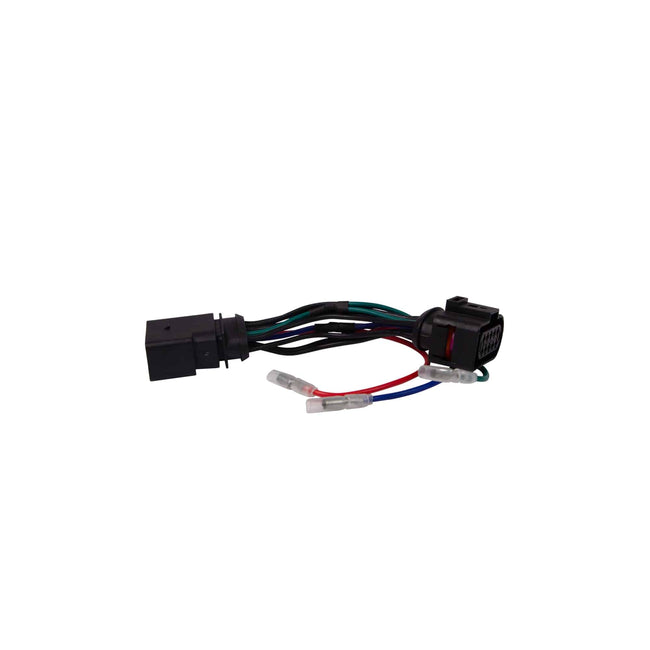

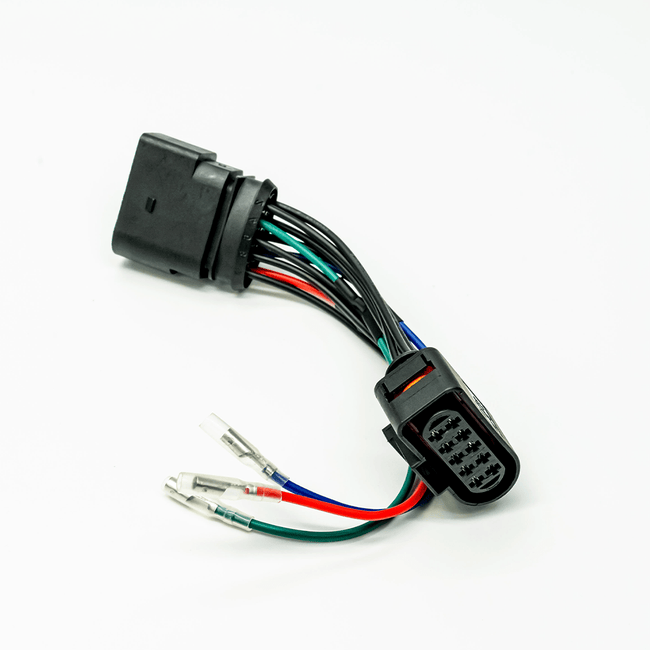

Headlight patch harness suits Holden Colorado
Rs. 1,700.00
Suitable for use with the Holden Colorado RG (2012 onward) models allowing for easy plug and play integration into the existing factory headlight connector that are located on the back of each side of the vehicle’s headlight assemblies.
Please Note: This product is only suitable for use with Lightforce wiring harnessesVehicle Compatibility
| Make | Model | Compatible From | Compatible To |
|---|---|---|---|
| Holden | Colorado | 2012 | 2021 |
| Holden | Colorado RG | 2012 | 2020 |
| Holden | Trailblazer | 2017 | 2021 |
| Holden | Colorado (fitted with LF fascia) | 2012 | 2021 |
It uses the OEM connection point on the back of the headlight assembly. You no longer need to put a hole in the dust cover or splice a wire into the OEM harness for auxiliary driving lights, simply:
Remove the existing OEM 10 pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector
Fit the corresponding new connector to the OEM connector that has just been removed
Fit the remaining new connector to the original OEM connector affixed to the headlight assembly
Then connect the corresponding connectors from anyone of our listed compatible wiring harnesses.
WIRING
Red wire is from the vehicles positive high beam circuit and is used to trigger the positive signal on an auxiliary relay for driving lights.
Green wire is from the vehicles negative circuit and is used to trigger the negative signal on an auxiliary relay for driving lights.
Both red & green wires must be connected
Blue wire is from the vehicles positive low beam headlight, for uses with positioning or DLR lights (fitment optional)
Compatible with the following Lightforce wiring harnesses
# LFDLHTS2 - Genesis / Venom
# LFDLHDS - HTX MK1/MK2
# LFDLHSS - 12V Single Switching harness
# LFLBHVSR/LFLBHVDR- Viper Light Bar
# LFDLHBEAST-U BEAST LED Driving Lights Wiring Kit – Universal Fitment
